CGMES handling with model exchange interface

1 About CGMES

CGMES stands for Common Grid Model Exchange Standard. It is a standard developed to facilitate the exchange of grid models and data among different stakeholders in the power system industry, such as utilities, system operators, and software vendors.

CGMES is structured using several profiles, each contained in a separate file. An exemplary selection of profiles is given in Table 1.

Table 1: Subselection of CGMES profiles
Abbreviation Description
SSH Steady State Hypothesis (steady state Load Flow Data with changeable parameters)
EQ Equipment Model
TP Topology profile: contains all topology objects, i.e. how equipment is electrically connected.
SV State Variables
DL Diagram Layout

For more information on CGMES, visit the following links: Video, ENTSO-E website, and Document.

2 Model exchange interface

The model exchange application of powfacpy contains functionalities to import and export CGMES data, as well as to update an existing CGMES grid with new data, for example from an SSH file.

This tutorials demonstrates how to

  • Import CGMES
  • Export CGMES
  • Update CGMES using SSH and DL profiles

First, activate the PowerFactory project as outlined in the getting started tutorial.

# If you use IPython/Jupyter:
import sys

sys.path.append(
    r"C:\Program Files\DIgSILENT\PowerFactory 2023 SP5\Python\3.11"
)  # you may use a different directory

# Get the PF app
import powerfactory
import powfacpy

app = powerfactory.GetApplication()
app.ActivateProject(
    r"powfacpy\powfacpy_tests_copy_where_tests_run"
)  # You may change the project path.

app.Show()

Get powfacpy objects (CGMES interface class and ActiveProject)

pfcgmes = CGMES(app)
pfp = pfcgmes.act_prj

Activate the study case:

study_case = pfp.get_unique_obj(r'Study Cases\test_model_exchange_interfaces\Study Case')
study_case.Activate()
1

The following grid exists in that project.

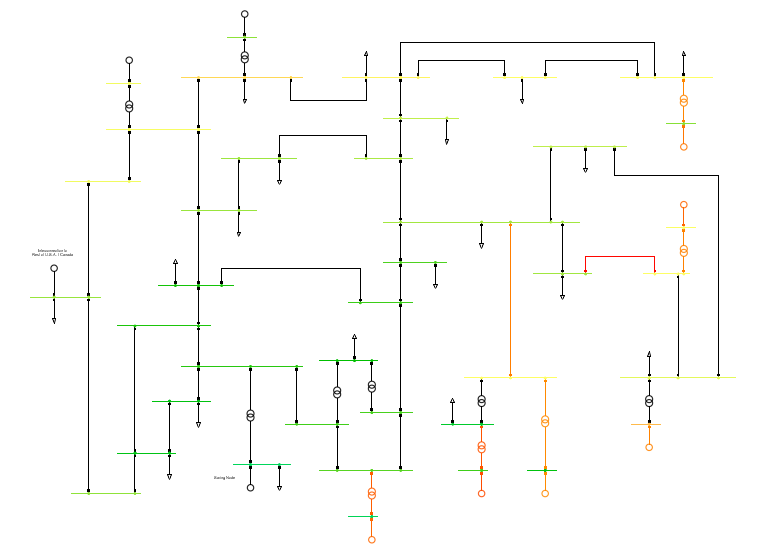

Figure 1: Grid for export

3 Export to CGMES

First, let’s export this grid to CGMES. The function cgmes_export() exports the active grid to OUTPUT_PATH.

OUTPUT_PATH = r"..\..\tests\tests_output\cgmes_export"

pfcgmes.cgmes_export(OUTPUT_PATH, selected_profiles="all", as_zip=True)
Info: The CGMES export can trigger error messages in the PowerFactory output window, but these do not usually affect the correctness of the exported data.

Here we can see the exported file.

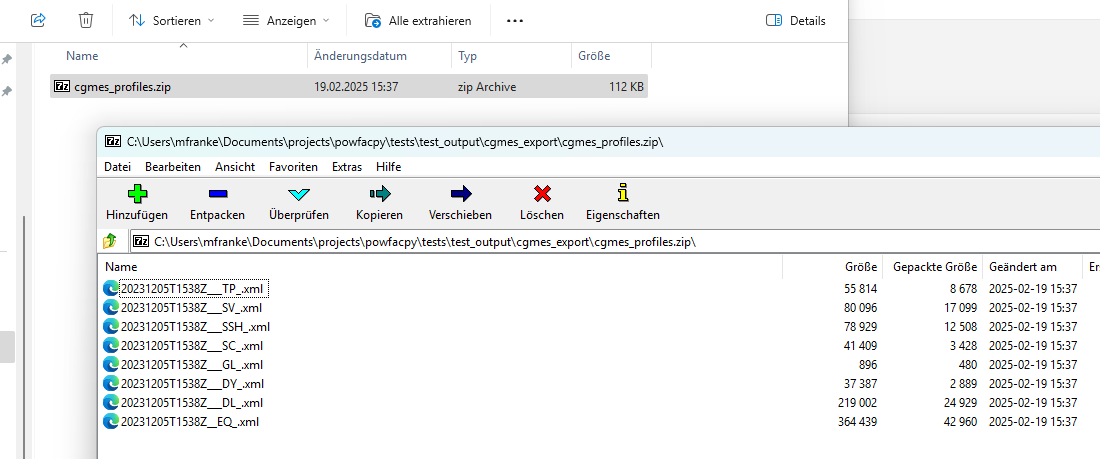

Figure 2: Exported ZIP file with all CGMES profiles

It is a .zip file, because we configured as_zip=True.

We can also export the separate files directly into the folder by setting as_zip=False. Additionally we can choose which profiles to export:

pfcgmes.cgmes_export(OUTPUT_PATH, selected_profiles="ssh dl sv", as_zip=False)
Info: The CGMES export can trigger error messages in the PowerFactory output window, but these do not usually affect the correctness of the exported data.

Now we exported the .xml files (not zipped) and only got SSH, DL and SV:

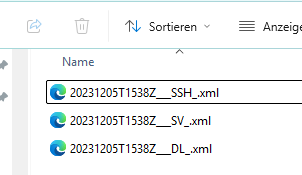

Figure 3: Selected profiles, unzipped

4 Import from CGMES

Now we could import our grid into another simulation software. Here, we just import again to PowerFactory.

We’ll demonstrate this by switching to a different study case and importing the grid again.

study_case.Deactivate()

new_study_case = pfp.create_in_folder(
    "New Study Case.IntCase",
    study_case.GetParent(),
    overwrite=True,
)
new_study_case.Activate()
0

Then import the previously exported CGMES files using cgmes_import()

new_grid = pfcgmes.cgmes_import(
    OUTPUT_PATH + "\\"
    + pfcgmes.exported_zip_name # default name that pfcgmes uses for exported zip file
    + ".zip"
)
new_grid.Activate()
0

The imported grid will have the same name as the original.

Import location is the root of the network data folder. The imported grid has a different folder structure than the original and a library folder with model types is imported together with the grid.

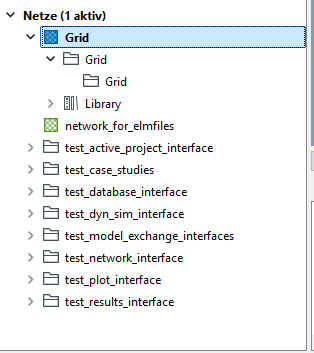

Figure 4: Structure of imported grid

But the resulting grid model still looks the same as the original:

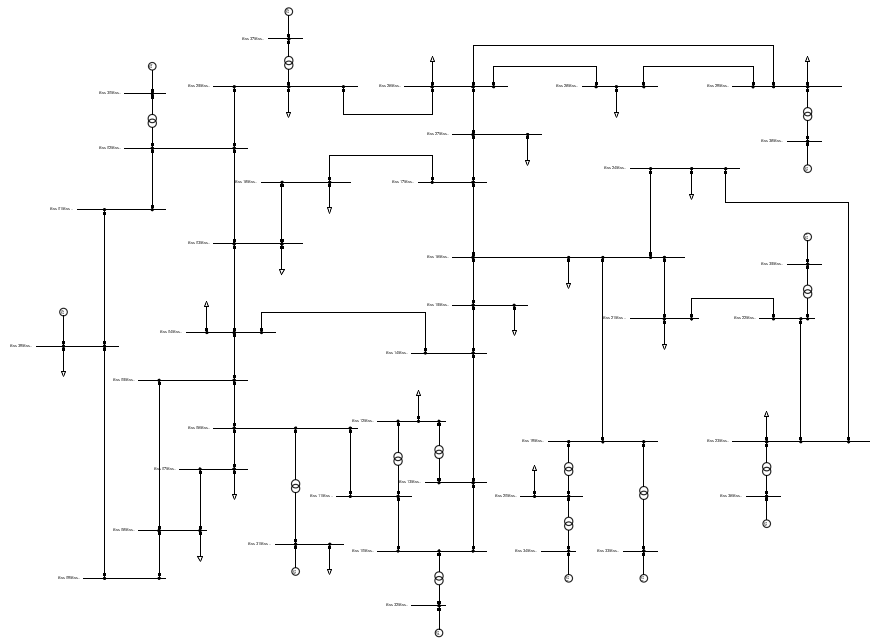

Figure 5: Imported grid

5 Update model with external data

Using CGMES, we can update a model using external data (e.g. SSH and DL).

In this case, we will think of study_case as some external reference model. We will change its data and update new_study_case accordingly using CGMES.

study_case.Activate()
0

All our loads have reactive power setpoints.

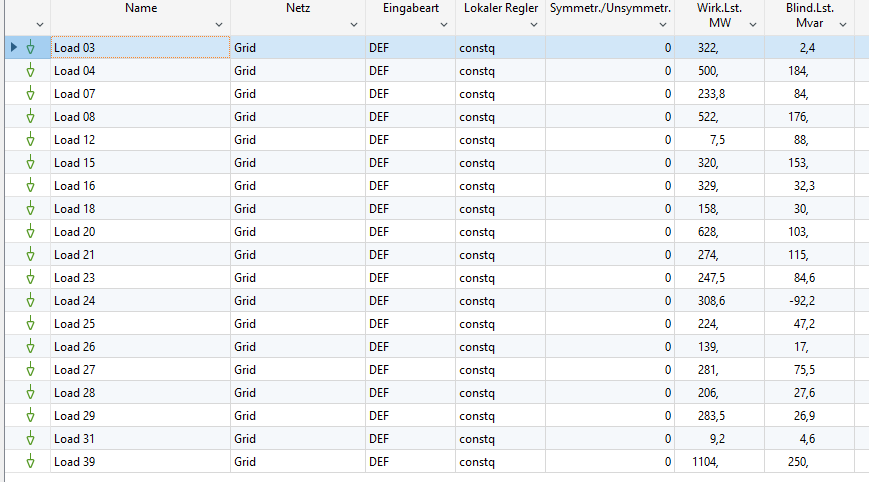

Figure 6: Original reactive power setpoints of loads

Let’s change them in the reference model. We will set them to 0, just as an example.

pfp.app.Hide()

reference_grid = pfp.get_unique_obj(r'Network Model\Network Data\test_model_exchange_interfaces\Grid')
for load in pfcgmes.act_prj.get_obj("*.ElmLod", include_subfolders=True, parent_folder=reference_grid):
    load.qlini = 0

pfp.app.Show()

Now the reactive power of all loads in the reference model are 0:

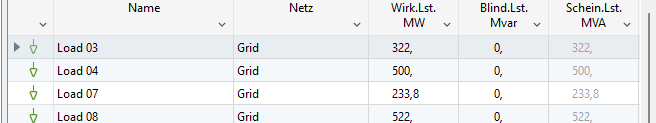

Figure 7: new reactive power in reference model

While in the new model it is still like it was before:

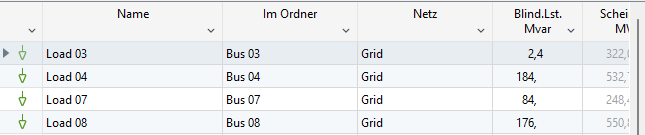

Figure 8: Reactive power in imported model

To update our new model with the change in reference model, we first export the reference model’s changes to CGMES using the SSH and DL profiles.

pfcgmes.cgmes_export(OUTPUT_PATH, selected_profiles="ssh dl", as_zip=True)
Info: The CGMES export can trigger error messages in the PowerFactory output window, but these do not usually affect the correctness of the exported data.

Then we take this to our new model.

new_study_case.Activate()
0

We need to supply the CIM archive that we used to import the new model. It is used as a base archive and needed for the update.

base_archive = pfcgmes.act_prj.get_unique_obj(
    pfcgmes.import_archive_name, parent_folder=pfcgmes.archive_folder
)

And by running update_profiles() we can update our new model.

pfcgmes.update_profiles(
    update_file_path=OUTPUT_PATH + "\\" + pfcgmes.exported_zip_name + ".zip",
     base_archive=base_archive
)

Now, the changes made in the reference model are also present in our new model.

Figure 9: Changes to reference model were transferred to new model
